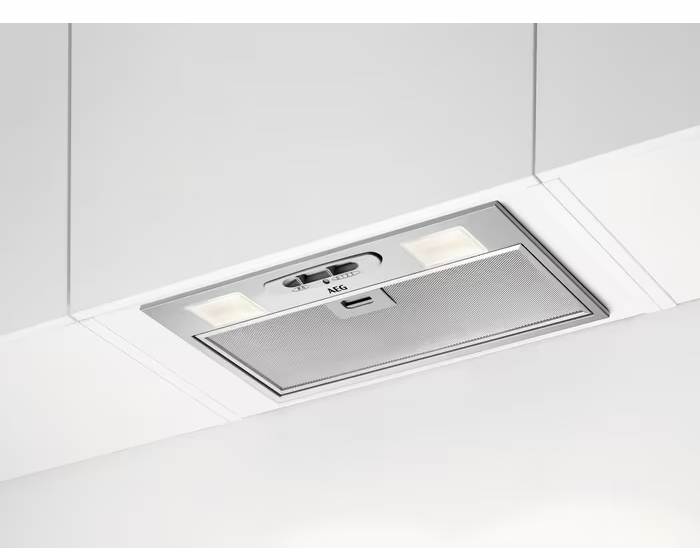

The powerful hood efficiently extracts kitchen odours.
LED lights are the smart, effective hood light choice.
Reliable motor that ensures clean kitchen air
A reliable grease filter that helps keep air odour-free in the kitchen
Efficient Mechanical Controls over light settings and fan speed.
Guarantee - 2 years parts and labour
Dimensions
Height: 138 mm
Width: 520 mm
Depth: 284 mm
Specification
Control type: Slider with 3 speeds.
Aluminium grease filters: The metal filter captures grease, reducing odours, purifying the air, and enhancing performance. It's dishwasher-safe and never needs replacing.
Extraction mode: A ducting kit is attached to the hood to extract cooking vapours externally, keeping the kitchen free from odours.
Recirculation mode: The hood captures cooking vapours, filters the air through the charcoal filter, and recirculates clean air back into the kitchen, keeping it free from odors.
Grease filter type and number: Aluminium mesh, 1
Performance
Number of Speed Settings: 3
Ducted Extraction Rate - Min/Max/Intensive (m³/h): 145/330/-
Ducted Noise Level - Min/Max/Intensive (dB): 45/63/-
Light temperature, K: 3000
Number of Lights: 2
Hob2Hood Connection: No
Min Recirculated Extraction Rate (m³/h): 140
Max Recirculated Extraction Rate (m³/h): 220
Min Recirculated Noise Level (dB): 56
Max Recirculated Noise Level (dB): 70
Number of Grease Filters: 1
Grease Filter Type: Aluminium mesh
Power input (W): 84.2
Installation
Minimum Distance from Electric Hob (cm): 42
Minimum Distance from Gas Hob (cm): 65
Size (cm): 52
Extraction Type - Recirculation: Yes
Extraction Type - Ducted (External): Yes
Net weight (kg): 4.3
Gross weight (kg): 5.1
Dimensions (mm) (HxWxD): 138x520x284
Installation Type: Group
Cord Length (m): 1.8
Air Outlet (mm): 150
Recommended fuse (A): N/A
Dimensions, HxWxD: -138x520x284
Plug or Hardwired: Hardwired connection only
Energy
Energy Rating: C
Grease Filter Efficiency Rating: D
Annual Energy Consumption (kWh): 51.9
Fluid Dynamic Efficiency Rating: D
Lighting Efficiency Rating: E
Frequency (Hz): 50
Other
Product Number (PNC): 942 022 780
Main Colour: Grey
Control Type: Mechanical slider
Lamp Type: LED bulb
Bar Code: 7333394053097
Charcoal Filter: Accessory
Charcoal Filter Type: ECFB03ST
Long Life Filter Type: No
Super Performing Filter Type: NO
Series: 3000
Superperforming charcoal filter compatible: NO, NO
Chimney denomination: n/a
Guarantee Information
Guarantee / warranty maybe subject to registration with the manufacturer.
