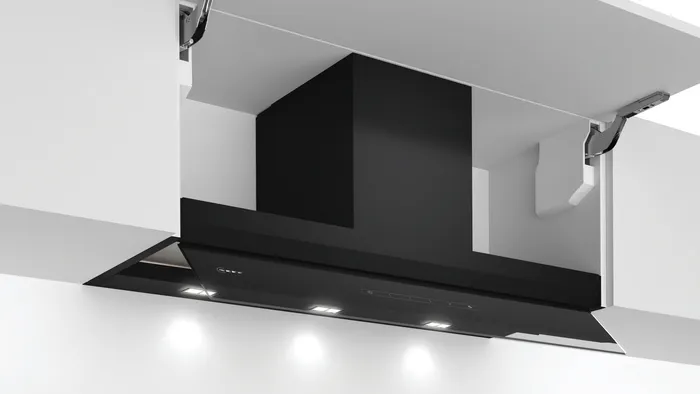

NEFF D95XAM2S0B N 70 Integrated Design Hood 90 cm clear glass black Hood Black

Key features

• Hidden Design – Seamlessly integrate your hood in a flush fitted cupboard design
• Extra Storage Space – The hood’s T-shaped design creates extra space for many large and handy items up to 10kg on each side
• Reduced Noise: our optimised motor guarantees a quiet cooking experience
• Intensive speed setting: increases the extraction rate when the steam gets intense
• Comfort Control - Automatic recognition of the glass panel position switches your hood and light on/off. No need to open the kitchen cabinet to control your hood, lifting the glass panel is enough.

Dimensions

Specifications

Variant* 90 cm wide
* Installation: Cupboard 90 cm
* Suitable for ducted extraction and recirculation
* For recirculated extraction various recirculation kits are available as optional accessories.

Design* Flush-fitted installation for a seamless integration in wall cupboards.
* Space efficient compact design for extra storage possibilities on the hood, up to max. 10 kg storage weight per side.
* Glass panel with touch control for an easy operation and enhanced vapor capture.
* Extraction and lighting are automatically turned on and off by opening and closing the glass panel.
* Lighting can also be turned on and off when the glass panel is closed by quick hand touch on control panel.
* Includes mats for hood storage areas, protectioning against scratches and to help prevent items moving in this space.

Features* Electronic controls via Touch control
* 3 speeds plus intensive
* SoftLight with dimmer function
* 3 x 2 W LED lights
* Colour Temperature: 3500 K
* Light Intensity: 517 lux
* Automatic revert setting
* Automatic intensive revert (6mins)
* Stainless steel filter covers
* 2 metal grease filter cassettes
* Easy to clean smooth surfaces and materials.

Performance* Extraction rate according to EN 61591 ø 15 cm:
* max. Normal use 460m³/h
* Intensive 749 m³/h
* Noise level according to EN 60704-3 and EN 60704-2-13 exhaust air:
* Max. normal use: 63dB(A) re 1 pW
* Intensive: 73 dB(A) re 1 pW
* Noise max. Normal Level: Noise, max. speed in normal us: 63 dB dB*
* With the Clean Air Plus recirculation kit (available as optional accessory) your appliances reaches:
* Extraction rate in recirculation mode:
* Max. normal use: 451m³/h
* Intensive: 652m³/h
* Noise level in recirculation mode:
* Max. normal use: 67dB(A) re 1 pW
* Intensive: 74 dB(A) re 1 pW

Planning and installation information* Installation system: IDH comfort installation
* Suitable for installation in bottomless wall cupboards.
* Enclosed spacers for installation in wall cupboards with maximum depth of up to 360mm.
* For installation in higher wall cupboards chimney extensions are available as optional accessories.
* Chimney extensions are compatible with the available recirculation kits.
* Dimensions (HxWxD): 340 x 897 x 298 mm
* Built-in dimensions (HxWxD): 340 x 860 x 300 mm
* Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
* Back-pressure flap: Yes
* Electrical cable length 1.3 m
* Please reference the built-in dimensions provided in the installation drawings

Consumption Data* Energy Efficiency Class: B (at a range of energy efficiency classes from A+++ to D)
* Average Energy Consumption: 64.7 kWh/year*
* Blower Efficiency Class: B*
* Lighting Efficiency Class: A*
* Grease Filtering Efficiency Class: B*
* Power rating: 259 W
