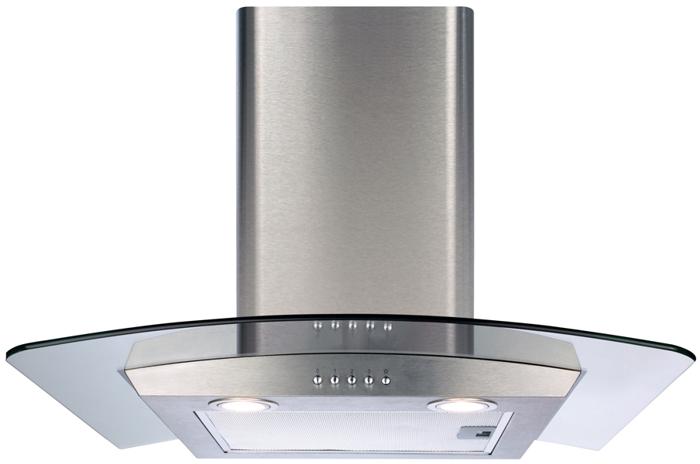

CDA ECP62SS 60cm Curved glass extractor Hood Stainless steel

Key features

• Ducted/re-circulating installation
• 3 speeds
• Type of grease filter: Aluminium grease filters
• Max Extraction rate: 391 m3/hr
• Charcoal filters: CHA12 (pack of 1)

Dimensions

Sorry this product is out of stock, please call 0151 263 8966 for latest price and availability

The CDA ECP62SS has a striking curved glass stainless steel design which is both chic and practical. The extractor has 3 speeds with push button control and built in LED lights to provide good illumination.

Features

Ducted/re-circulating installation
3 speeds
Type of grease filter: Aluminium grease filters

Optional Accessories
Ducting kit code: 120mm, AED 510/560
Ducting kit code: 150mm, AED 610/660

Technical Specification

Required height over gas hobs: 700 mm (min)
Required height over electric hobs: 600 mm (min)
Power supply: 3 A
Mains lead length: 1 m
Mains lead rating: H05VV-F m
Protection class: Class I
Outlet diameter: 120mm/150mm mm
Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm

Extraction Rates And Noise

Extraction rate: 391 m3/hr
Noise level: 60 dBA
Extraction rate at first speed: 218 m³/hr
Extraction rate at second speed: 302 m³/hr
Extraction rate at third speed: 391 m³/hr
Noise level at first speed: 50 dBA
Noise level at second speed: 58 dBA
Noise level at third speed: 60 dBA

Filters

Charcoal filters: CHA12 (pack of 1)
Number of layers: 4
Number of grease filters: 1
Number of charcoal filters (optional): 1
Ducting kit: AED61/63/64 or AED51/53/54 with adaptor
Fitting Notes
Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearnace between the hob and extractor
