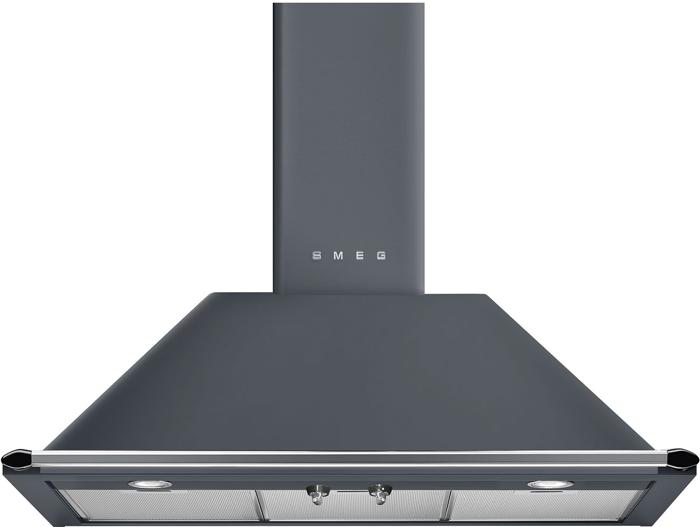

Smeg KT90GRE Victoria 90cm Hood Slate Grey

Key features

• Extraction Rate (m³/h) - 334-788 depending on installation
• Type of Extraction - Ducted & Recirculation
• Charcoal Filter for Re-circulation (included) - No
• Air Outlet Location - Top
• 3 different speed settings
• Powerful LED lighting

Dimensions

Type

Product family: Hood
Hood Type: Decorative wall hood
Hood width: 90 cm
Extraction: Ducted out or re-circulation possible
EAN code: 8017709303785

Aesthetics

Colour: Slate Grey
Finishing: Gloss
Aesthetics: Victoria
Design: Chimney
Material: Painted material
Type of steel: Brushed

Programs / Functions

Intensive/turbo setting: when extra fast extraction is required.
No. of speeds: 3
Intensive speed: Yes

Controls

Control setting: Control knobs
Control knobs: Victoria
No. of controls: 2
Controls colour: Steel effect

Technical Features

No. of lights: 2
Light type: LED
Light power: 1 W
Light colour temperature scale (°K): 3000 °K
Free outlet maximum capacity: 820 m³/h
Motor power: 275 W
No. of filters: 3
Anti-grease filters: Aluminium
Minimum distance from GAS hob: 750 mm
Minimum distance from ELECTRIC hob: 650 mm
Vent outlet: 150 mm
Non return valve: Yes

Performance / Energy Label

A: Product drying performance, measured from A+++ to D / G depending on the product family
Energy efficiency class ( EEC): A
Fluid Dynamic Efficiency class (FDEC): A
Grease Filtering Efficiency Class (GFEC): C
Lighting Efficiency Class (LEC): A
Annual Efficiency Consumption (AEChood): 59 KWh/year
Fluid Dynamic Efficiency (FDE): 30
Lighting Efficiency (LE): 102.3 lux/W
Grease Filtering Efficiency (GFE): 76.6 %
Air flow at minumum speed (Qmin): 334 m³/h
Maximum extraction rate: 567 m³/h
Intensive extraction rate: 788 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 49 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 62 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 69 dB(A)
Time increase factor (F): 0.9
Energy Efficiency Index per first cavity: 52.4
Measured air flow rate at best efficiency point (Qbep): 438 m³/h
Measured air pressure at best efficiency point (Qbep): 434 Pa
Measured electric power input at best efficiency point (Wbep): 176 W
Normal Power of the light system (Wl): 2 W
Average illumination of the light on the cooking surface (Emiddle): 225 lux
Sound power level at highest setting (Lwa): 62 dB(A)

Electrical Connection

Nominal power: 278 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Power supply cable length: 1000 mm
Speed 1
Extraction rate IEC 61591: 334 m³/h
Noise level IEC 60704-2-13: 49 dB(A)
Power: 199 W
Speed 2
Extraction rate IEC 61591: 439 m³/h
Noise level IEC 60704-2-13: 57 dB(A)
Power: 231 W
Speed 3
Extraction rate IEC 61591: 567 m³/h
Noise level IEC 60704-2-13: 62 dB(A)
Power: 260 W

Intensive speed

Extraction rate (IEC 61591): 788 m³/h
Noise level IEC 60704-2-13: 69 dB(A)
Power: 280 W

Logistic Information

Dimensions of the product HxWxD (mm): 740x895x530
Width: 895 mm
Depth (mm): 530 mm
Product Height (mm): 740 mm
Net weight (kg): 16.500 kg
Gross weight (kg): 21.400 kg
FR Extention single group
Packed width: 965 mm
Packaged depth: 515 mm
Height (mm) packed: 680 mm
Dimensions of the packed product (mm): 680X965X515
Maximum stackability: 4
Type of packaging: Cardboard
Packaging composition - paper & cardboard (kg): 2.660 kg
Packaging composition - polystyrene (kg): 0.800 kg
Packaging composition - wood (kg): 0.000 kg
Packaging composition - plastic (kg): 0.087 kg
