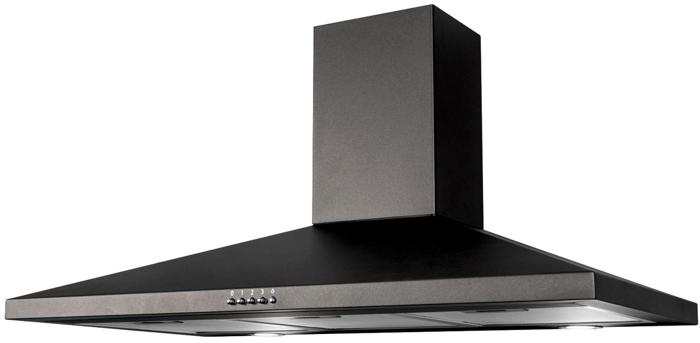

OEM CHL90BL 90cm Pyramid Chimney Cooker Hood Black

Key features

Dimensions

If you are looking for a practical cooker hood that will integrate with any kitchens décor, the CHL90BL is the perfect choice for you. With 3 variable speeds, removable grease filters and a powerful single fan motor, you can be sure this appliance will meet any cooking challenge.

This cooker hood is suitable for either internal re-circulation – air is passed through a charcoal filter, purified and released back into the kitchen, or external extraction – cooking odours and vapours are transferred outside with the help of a ducting kit. Please see below for the appropriate accessories.

This product boasts a 5 Year Parts & 2 Year Labour Guarantee* to give you the reassurance you need when buying a new appliance.

Features

3 variable speeds
Push button controls
2 x 1W LED lamps
Single fan motor
Ducted or re-circulated installation
3 x dishwasher safe aluminium grease filters
2 x telescopic chimney sections

Optional Accessories

SIA2 re-circulation filters available from our store
D5 & D7 external ducting kits available from our store

Fitting Notes

Please ensure there is enough ceiling height to accommodate the clearance needed between the appliance and the hob.
Required height over gas hob (mm): 750
Required height over electric hob (mm): 650
Please note that if the hob manual states the clearance must be greater than the above, this will override these instructions.

Technical Specification

Ducting outlet diameter (mm): 150
Extraction rate (m3/hr): 400
Noise level (dBa): 66
Fuse rating (A): 3
Product dimensions (mm): W900 x D490 x H590-760
Height of chimney sections (mm): 330 + 330
Net / gross weight (kg): 11.5 / 14.5
Power (W): 27
Mains lead length (m): 1

Guarantee Information
