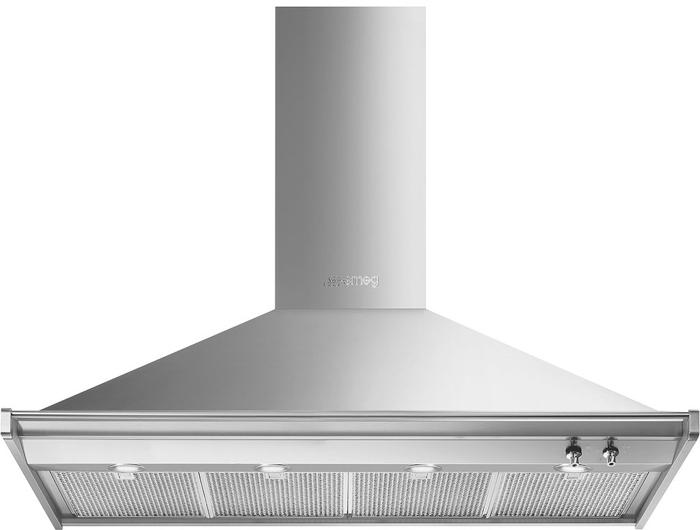

Smeg KD120HXE 120cm Opera Chimney Hood Stainless steel

Key features

• Easy-to-use rotary dials
• Boost Mode
• Quickly clears the air in a medium-sized kitchen
• 4 stainless steel grease filters
• 4 x 1w LED lights
• Maximum extraction rate: 606 m³/hour

Dimensions

Stainless steel Chimney Hood KD120HXE, This KD120HXE hood has install dimensions of 120cm (width) x 80cm (height) x 55.5cm (Depth) and an operating noise level of 73dB. The KD120HXE model also comes with Easy-to-use rotary dials, Boost Mode, Quickly clears the air in a medium-sized kitchen, 4 stainless steel grease filters, 4 x 1w LED lights, Maximum extraction rate: 606 m³/hour, Suitable for ducted extraction or recirculation, Efficient LED lights help you monitor food as it cooks, Clear cooking smells quickly with the boost mode, Quickly clears the air in a medium-sized kitchen and a manufacturer's warranty of 2 years for peace of mind.

Type

Product family Hood
Hood Type Decorative wall hood
Aesthetics Classic
Colour Stainless steel
Hood width 120 cm
Energy efficiency class ( EEC) A+

AESTHETICS

Colour: Stainless steel
Finishing: Brushed
Aesthetics: Classic
Design: Chimney
Material: Stainless steel
Type of steel: Brushed

PROGRAMS / FUNCTIONS

Intensive/turbo setting: when extra fast extraction is required.
No. of speeds: 3
Intensive speed: Yes

CONTROLS

Control setting: Control knobs
Control knobs: Classic
No. of controls: 2
Controls colour: Steel effect

TECHNICAL FEATURES

No. of lights: 4
Light type: LED
Light power: 4 W
Light color temperature scale (°K): 4000 °K
Free outlet maximum capacity: 820 m³/h
Motor power: 275 W
No. of filters: 4
Anti-grease filters: Stainless steel
Minimum distance from GAS hob: 650 mm
Minimum distance from ELECTRIC hob: 650 mm
Vent outlet: 150 mm
Non return valve: Yes

PERFORMANCE / ENERGY LABEL

Energy efficiency class ( EEC): A+
Fluid Dynamic Efficiency class (FDEC): A
Grease Filtering Efficiency Class (GFEC): D
Lighting Efficiency Class (LEC): A
Annual Efficiency Consumption (AEChood): 42 KWh/year
Fluid Dynamic Efficiency (FDE): 36.3
Lighting Efficiency (LE): 74.8 lux/W
Grease Filtering Efficiency (GFE): 74.9 %
Air flow at minumum speed (Qmin): 287 m³/h
Maximum extraction rate: 606 m³/h
Intensive extraction rate: 777 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 49 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 67 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 73 dB(A)
Power Consumption in Off mode (Po): 0.1 W
Power consumption in stand-by mode (Ps): 0.1 W
Time increase factor (F): 0.7
Measured air flow rate at best efficiency point (Qbep): 400 m³/h
Measured air pressure at best efficiency point (Qbep): 490 Pa
Measured electric power input at best efficiency point (Wbep): 150 W
Normal Power of the light system (Wl): 5 W
Average illumination of the light on the cooking surface (Emiddle): 329 lux
Sound power level at highest setting (Lwa): 67 dB(A)

ELECTRICAL CONNECTION

Nominal power: 179 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Power supply cable length: 1000 mm

SPEED 1

Extraction rate IEC 61591: 287 m³/h
Noise level IEC 60704-2-13: 49 dB(A)
Power: 176 W

SPEED 2

Extraction rate IEC 61591: 389 m³/h
Noise level IEC 60704-2-13: 58 dB(A)
Power: 230 W

SPEED 3

Extraction rate IEC 61591: 606 m³/h
Noise level IEC 60704-2-13: 67 dB(A)
Power: 260 W

INTENSIVE SPEED

Extraction rate (IEC 61591): 777 m³/h
Noise level IEC 60704-2-13: 73 dB(A)
Power: 286 W

LOGISTIC INFORMATION

Dimensions of the product (mm): 800x1200x555
Width: 1200 mm
Depth (mm): 555 mm
Product Height (mm): 800 mm
Net weight (kg): 20.320 kg
Gross weight (kg): 28.700 kg
