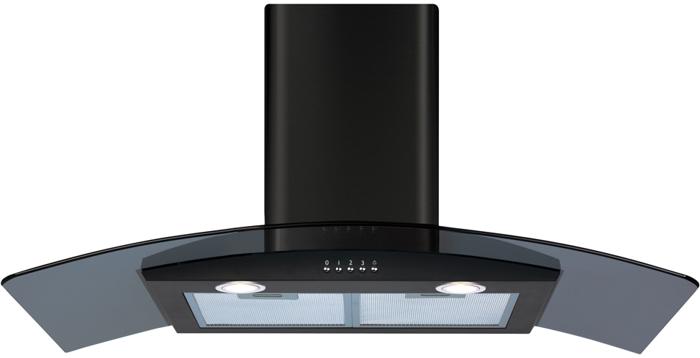

CDA ECP92BL Curved glass extractor Hood Black

Key features

• 3 x speeds
• Ducted/re-circulating installation
• Type of grease filter: Aluminium grease filters
• Required height over electric hobs: 600 mm (min)
• Required height over gas hobs: 700 mm (min)
• Power supply: 3 A

Dimensions

Fitting Notes

Fitting note: please ensure that you check the ceiling height is sufficient to allow the required clearance between the hob and extractor

Technical Specification

Outlet diameter: It is best to use the AED6 (150mm) ducting kit rather than the AED5 (120mm) with the adaptor. This keeps noise levels to a minimum. mm
Outlet diameter: 120mm/150mm mm
Protection class: Class I
Mains lead rating: H05VV-F m
Mains lead length: 1 m
Power supply: 3 A
Required height over electric hobs: 600 mm (min)
Required height over gas hobs: 700 mm (min)

Extraction Rates And Noise

Noise level at second speed: 58 dBA
Extraction rate at first speed: 224 m³/hr
Extraction rate at third speed: 377 m³/hr
Noise level at first speed: 51 dBA
Noise level at third speed: 61 dBA
Extraction rate at second speed: 315 m³/hr
Noise level: 61 dBA
Extraction rate: 377 m3/hr

Filters

Charcoal filters: CHA12 (pack of 1)
Ducting kit: AED61/63/64 or AED51/53/54 with adaptor
Number of charcoal filters (optional): 1
Number of grease filters: 1
Number of layers: 4

Optional Accessories

Ducting kit code: 150mm, AED 610/660
Ducting kit code: 120mm, AED 510/560
Misc Information

WEEE Category: 01
