Perimeter extraction panels: very efficient and aid noise reduction.
Product family: Hood

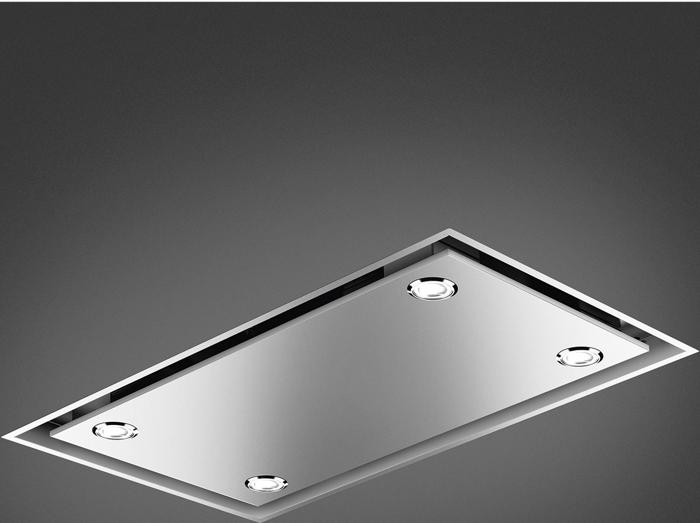

Hood Type: Ceiling hood
Hood width: 90 cm
Extraction: Extraction
Electronic control: Yes
Perimeter extraction: Yes
EAN code: 8017709258108
AESTHETICS
Colour: Stainless steel
Finishing: Satin
Aesthetics: Universale
Design: Ceiling
Material: Stainless steel
Type of steel: Brushed
PROGRAMME / FUNCTIONS
Intensive/turbo setting: when extra fast extraction is required.
No. of speeds: 3
Intensive speed: Yes
CONTROLS
Control setting: Electronic buttons
TECHNICAL FEATURES
Filters: Model has filters to help remove grease from the steam emanating from the pans during cooking. Lights: All cooker hoods feature lights to illuminate the cooking area or add to the ambience of the kitchen.
No. of lights: 4
Light type: LED
Light Power: 1 W
Light color temperature scale (°K): 3000 °K
Free outlet maximum capacity: 820 m³/h
Motor power: 275 W
No. of filters: 2
Anti-grease filters: Stainless steel
Minimum distance from GAS hob: 750 mm
Vent outlet: 150 mm
Minimum distance from ELECTRIC hob: 650 mm
Non return valve: Yes
PERFORMANCE / ENERGY LABEL
Energy efficicency class ( EEC): A+
Fluid Dynamic Efficiency class (FDEC): A
Grease Filtering Efficiency Class (GFEC): F
Lighting Efficiency Class (LEC): A
Annual Efficiency Consumption (AEChood): 43 kWh/a
Fluid Dynamic Efficiency (FDE): 35.1
Lighting Efficiency (LE): 76.1 lux/W
Grease Filtering Efficiency (GFE): 54.1 %
Air flow at minumum speed (Qmin): 232 m³/h
Air flow at maximum speed (Qmax): 589 m³/h
Air flow at boost speed (Qboost): 792 m³/h
Airbourne acouistical A-weighted sound Power Emission at minimum speed (SPEmin): 46 dB(A)
Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax): 68 dB(A)
Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost): 71 dB(A)
Power consumption in stand-by mode (Ps): 0.41 W
Time increase factor (F): 0.7
Energy Efficiency Index: 41.6
Measured air flow rate at best efficiency point (Qbep): 399 m³/h
Measured air pressure at best efficiency point (Pbep): 486 Pa
Measured electric power input at best efficiency point (Wbep): 154 W
Nominal Power consumption of the light system (WL): 4 W
Average illumination of the light on the cooking surface (Emiddle): 353 lux
Sound power level at highest setting (Lwa): 68 dB(A)
ELECTRICAL CONNECTION
Electrical connection rating: 280 W
Voltage: 220-240 V
Frequency (Hz): 50-60 Hz
Power supply cable length: 1500 mm
SPEED 1
Extraction rate IEC 61591: 232 m³/h
Noise level IEC 60704-2-13: 47 dB(A)
Power: 182 W
SPEED 2
Extraction rate IEC 61591: 428 m³/h
Noise level IEC 60704-2-13: 58 dB(A)
Power: 199 W
SPEED 3
Extraction rate IEC 61591: 589 m³/h
Noise level IEC 60704-2-13: 69 dB(A)
Power: 214 W
INTENSIVE SPEED
Extraction rate (IEC 61591): 792 m³/h
Noise level IEC 60704-2-13: 72 dB(A)
Power: 270 W
LOGISTIC INFORMATION
Dimensions of the product (mm): 312x899x469
Width: 899 mm
Depth (mm): 469 mm
Product Height (mm): 312 mm
Net weight (kg): 16.000 kg
Gross weight (kg): 21.500 kg
