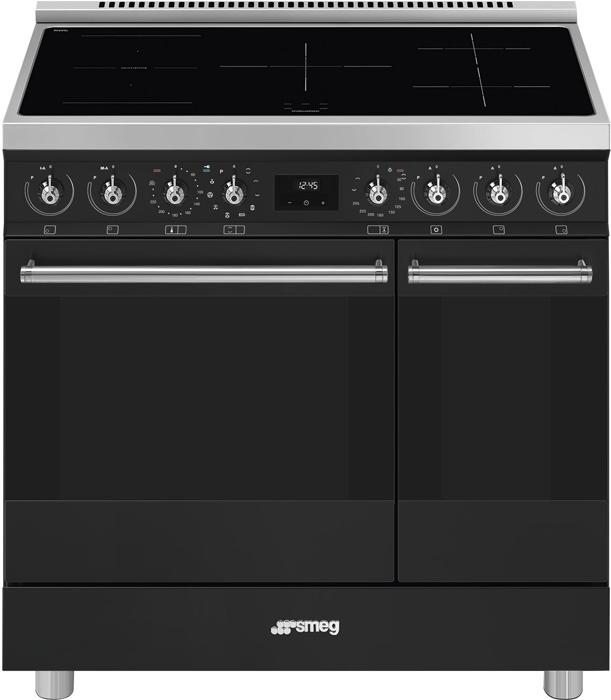

Smeg C92IPMB2 90x60 cm Symphony Classic Induction Range Cooker Matte Black

Key features

• The best cooking performances guaranteed by ventilated circular flow. - Circulaire
• Induction offers fast cooking and precise temperature control - Induction hob
• Easy and intuitive timer setting with a single touch
• The oven has a fan equipped with a circular heating element allowing cooking with rotating heat
• The best cooking performance at the highest energy efficiency
• New cooling system with tangential fan and airflow from the door to the splashback
• Easy oven cleaning thanks to special pyrolytic function

Dimensions

Aesthetics

Colour: Matte Black
Design: Square design
Finishing: Matte
Aesthetics: Classic
Command panel finish: Enamelled metal
Series: Symphony
Material: Enamelled
Upstand: Yes
Hob colour: Stainless steel
Type of control setting: Control knobs
Slider: Red

Type

Product Family: Cooker
Cooker size: 90x60 cm
Cooker configuration: Full Electric
Hob type: Induction
Hob energy type: Electric
N. of ovens: 2
Main oven type: Thermo-ventilated
Type of second oven: Static
EAN code: 8017709329730
Installation positioning of the appliance: Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1
Cleaning system: Pyrolytic

Programs / Functions

Traditional cooking functions

Upper and lower element only: a traditional cooking method best suited for single items located in the centre of the oven. the top pf the oven will always be hottest. Ideal for roast, fruit cakes, bread etc. Static Fan with upper and lower elements: The elements combined with the fan aim to provide more uniform heat, a similar method to conventional cooking, so pre-heat is required. Most suitable for items requiring slow cooking methods. Fan assisted Circulaire: The combination of the fan and circular element around it gives a hot air cooking method. This provides many benefits including no preheat if cook time is more than 20 minutes, no flavour transfer when cooking different foods at the same time, less energy, and shorter cook times. Good for all types of food. Circulaire Circulaire with upper and lower elements: The use of the fan with both elements allows food to be cooked quickly and effectively, ideal for large joints that require thorough cooking. It offers a similar result to rotisserie, moving the heat around the food, instead of moving the food itself, enabling any size or shape to be cooked. Turbo (circulaire + bottom + upper + fan) ECO: The combination of the grill, fan and lower element is particularly suitable for cooking small quantities of food. ECO Grill element: Using of grill gives excellent results when cooking meat of medium and small portions, especially when combined with a rotisserie (where possible). Also ideal for cooking sausages and bacon. Large grill Fan with grill element: The fan reduces the fierce heat from the grill, providing an excellent method of grilling various foods, chops, steaks, sausages etc. giving even browning and heat distribution, without drying out the food. The top two levels recommended for use, and the lower part of the oven can be used to keep items warm at the same time, an excellent facility when cooking a grilled breakfast. Half grill (centre portion only) is ideal for small quantities of food. Fan grill (large) Lower heating element only: This function is ideal for foods that require extra base temperature without browning, e.g. pastry dishes, pizza. Also suitable for slow cooking of stews and casseroles. Base Circogas: In gas ovens the fan distributes the heat quickly and evenly throughout the oven cavity, avoiding flavour transfer when cooking a number of different dishes at the same time. In electric ovens this combination completes cooking more quickly of foods that are ready on the surface, but that require more cooking inside, without further browning. Fan assisted base

Cleaning functions

Pyrolitic: Pyrolitic cleaning cycles can be selected as necessary to automatically clean the oven interior. Pyrolytic

Options Main Oven

Timer: Yes
End of cooking acoustic alarm: Yes
Minimum Temperature: 50 °C
Maximum temperature: 260 °C

Programs / Functions Auxiliary Oven

Cooking functions cavity 2: 3

Options Auxiliary Oven

Minimum Temperature: 50 °C
Maximum temperature: 245 °C

Hob options

Control Lock / Child Safety: Yes
Limited Power Consumption Mode: Yes
Limited Power Consumption Mode in W: 3700, 4800, 7400, 10400 W
Multizone Option: Yes

Hob technical features

Total no. of cook zones: 5
No. of cooking zones with Booster: 5
Number of Flexible zones: 1
1st zone position: Front left
2nd zone position: Rear left
3rd zone position: Central
4th zone position: Rear right
5th zone position: Front right
1st zone type: Induction - multizone
2nd zone type: Induction - multizone
3rd zone type: Induction - single
4th zone type: Induction - single
5th zone type: Induction - single
1st zone dimensions: 21.0x19.0 cm
2nd zone dimensions: 21.0x19.0 cm
3rd zone dimensions: Ø 27.0 cm
4th zone dimensions: Ø 18.0 cm
5th zone dimensions: Ø 21.0 cm
1st zone power: 2.10 kW
2nd zone power: 1.60 kW
3rd zone power: 2.30 kW
4th zone power: 1.20 kW
5th zone power: 2.30 kW
1st zone booster power: 2.30 kW
2nd zone booster power: 1.85 kW
3rd zone booster power: 3.00 kW
4th zone booster power: 1.40 kW
5th zone booster power: 3.00 kW
Automatic switch off when overheat: Yes
Automatic switch off when overflow: Yes
Automatic pan detection: Yes
Minimum pan diameter indication: Yes
Selected zone indicator: Yes
Residual heat indicator: Yes

Main Oven Technical Features

Net volume of the cavity: 70 litres
Gross volume, 1st cavity: 79 l
Cavity material: Easy clean enamel
Shelf positions: 5
Type of shelves: Metal racks
Roof Liner: Yes
No. of lights: 1
Light type: Halogen
Light power: 40 W
Fan number: 1
Cooking time setting: Start and Stop
Door opening: Flap down
Light when oven door is open: Yes
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
Total no. of door glasses: 4
No.of thermo-reflective door glasses: 3
Door Lock During Pyrolisis: Yes
Safety Thermostat: Yes
Cooling system: Tangential
Heating suspended when door is opened: Yes
Grill type: Electric
Grill elememt: 1700 W
Large grill - Power: 2700 W
Lower heating element power: 1200 W
Upper heating element - Power: 1000 W
Circular heating element - Power: 2000 W
Temperature control: Electro-mechanical

Second Oven Technical Features

Cavity material: Easy clean enamel
Shelf positions: 4
Type of shelves: Metal racks
No. of lights: 1
Light type: Incandescent
Light power: 25 W
Door opening: Flap down
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
No. total door glasses: 3
No. thermo-reflective door glasses: 1
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Grill element - power: 1300 W
Large grill - Power: 1900 W
Lower heating element - power: 700 W
Upper heating element - Power: 600 W
Temperature control: Electro-mechanical

Performance / Energy Label

Energy efficiency class: A
GAS - Energy consumption in fan-forced convection, first cavity: 2.88 MJ
Energy consumption forced air convection (kWh) first cavity: 0.80 kWh
GAS - Energy consumption conventional mode, first cavity: 3.92 MJ
Energy consumption conventional first cavity (kWh): 1.09 kWh
Energy consumption for the hob: 182.2 Wh/Kg
Energy consumption zone 1: 187 Wh/Kg
Energy consumption zone 2: 185 Wh/Kg
Energy consumption zone 3: 171 Wh/Kg
Energy consumption zone 4: 191 Wh/Kg
Energy consumption zone 5: 177 Wh/Kg

Electrical Connection

Max Power Draw: 12000 W
Current: 36 A
Voltage: 220-240 V
Voltage 2 (V): 380-415 V

Standby consumption

Standby activation time: 1 min.
Standby power: 1.3 W

Logistic Information

Dimensions of the product HxWxD (mm): 900x900x600 mm
Width (mm): 900 mm
Product Height (mm): 900 mm
Depth (mm): 600 mm
Dimensions of the packed product (mm): 860X960X670 mm
Gross weight (kg): 93.800 kg
Net weight (kg): 85.300 kg
Packed width: 960 mm
Packaged depth: 670 mm
Height (mm) packed: 860 mm
Maximum stackability: 5
Type of packaging: Shrinkwrap
Packaging composition - paper & cardboard (kg): 3.976 kg
Packaging composition - polystyrene (kg): 1.299 kg
Packaging composition - wood (kg): 2.660 kg
Packaging composition - plastic (kg): 0.585 kg
