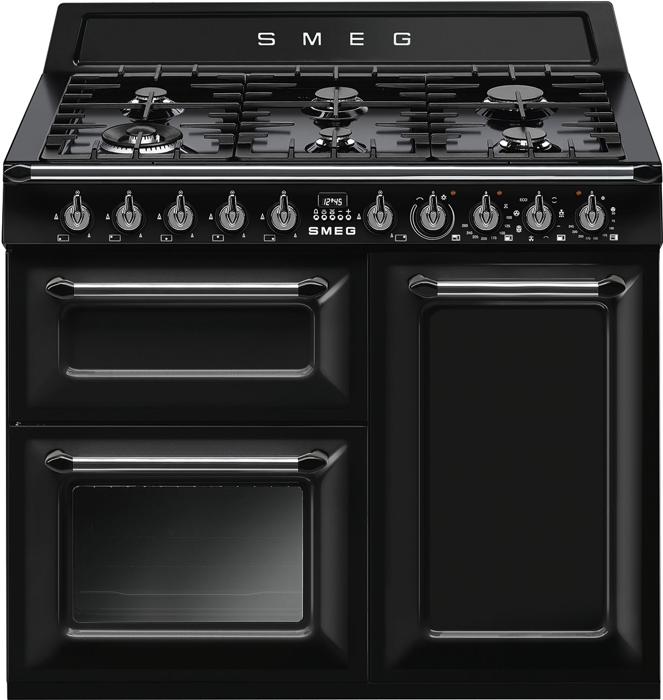

Smeg TR103BL Victoria 100cm (With Free Hood) Offer has ended Dual Fuel Range Cooker Black

Key features

• Triple glazed door
• Easy clean enamel interior
• Air cooling system
• Traditional design
• Vapor Clean Programme
• Closed door grilling
• 6 x Burner Gas Hob
• Cast Iron Pan Supports, Auto Safety Cut-Out
• Main Oven - Lower Left - Capacity 61 Litres
• Tall Auxiliary Oven - Right - Capacity 84 Litres
• Grill Compartment - Top Left
• Power Supply Required 8.9kW

Dimensions

Sorry this product is out of stock, please call 0151 263 8966 for latest price and availability

Victoria aesthetic

Inspired by Smeg’s very first ‘Elisabeth’ cooker produced in 1948, the Victoria range perfectly captures the essence of timeless classic design and exclusive aesthetics, thanks to Smeg’s signature 1950’s style branding and premium build quality.

AUXILIARY OVEN

The TR103's AUXILIARY OVEN (positioned on the right hand side) has a full height side opening door which is internally glazed for energy efficiency. With a net capacity of 84 litres this tall oven is equipped a total of 9 cooking levels, making it ideal for small batch baking and plate warming - in fact you can cook a whole roast dinner just in this tall oven.
GRILL OVEN

The GRILL OVEN (positioned top left) boasts a powerful 2.7kW adjustable grill, and has a 36 litre net capacity alongside 2 cooking levels.

Type

Installation in column: Installation in column Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity. Gas ovens offer instantaneous heat control, reduced cooking times and the ability to bake at much lower temperatures than electric ovens.
Product Family: Cooker
Cooker size: 100x60 cm
Cooker configuration: Dual fuel
Hob type: Gas
Hob energy type: Gas
N. of ovens: 3
Main oven type: Thermo-ventilated
Type of second oven: Thermo-ventilated
EAN code: 8017709237332
Installation positioning of the appliance: Free-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1
Cleaning system: Vapor Clean

Aesthetics

Heavy duty cast iron pan stands: for maximum stability and strength. Knobs control
Colour: Black
Design: Victoria
Aesthetics: Victoria
Command panel finish: Enamelled metal
Material: Enamelled
Upstand: Yes
Hob colour: Black enamel
Type of pan stands: Cast Iron
Type of control setting: Control knobs
Control knobs: Smeg Victoria
Controls colour: Stainless steel
No. of controls: 10
Display: electronic 5 buttons
Door: With frame
Glass type: Black
Handle: Smeg Victoria
Handle Colour: Brushed stainless steel
Plinth: Anthracite

Programs / Functions

Traditional cooking functions

Cleaning functions

Vapor Clean: a simple cleaning function using steam to loosen deposits in the oven cavity. Vapor Clean

Options Main Oven

Timer: Yes
End of cooking acoustic alarm: Yes
Minimum Temperature: 50 °C
Maximum temperature: 260 °C
Programs / Functions Auxiliary Oven
Cooking functions cavity 2: 1
Traditional cooking functions, cavity 2
Options Auxiliary Oven
Minimum Temperature: 50 °C
Maximum temperature: 245 °C
Programme / Functions Third Oven
No. of functions third oven: 1

Options Third Oven

Minimum Temperature: 50 °C
Maximum temperature: 260 °C

Hob technical features

Ultra rapid burners: Powerful ultra rapid burners offer up to 5kw of power.
Total no. of cook zones: 6
1st zone position: Front left
2nd zone position: Rear left
3rd zone position: Front centre
4th zone position: Rear centre
5th zone position: Front right
6th zone position: Rear right
1st zone type: Gas - 2UR (dual)
2nd zone type: Gas - AUX
3rd zone type: Gas - AUX
4th zone type: Gas - Semi Rapid
5th zone type: Gas - Semi Rapid
6th zone type: Gas - Rapid
1st zone power: 4.20 kW
2nd zone power: 1.00 kW
3rd zone power: 1.00 kW
4th zone power: 1.80 kW
5th zone power: 1.80 kW
6th zone power: 2.90 kW
Type of gas burners: Standard
Burner caps: Matt black enamelled
Automatic electronic ignition: Yes
Gas safety valves: Yes
Main Oven Technical Features
All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. Triple glazed doors: Number of glazed doors. The capacity indicates the amount of usable space in the oven cavity in litres. Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. The oven cavity has 4 different cooking levels. Tilting grill: the tilting grill can be easily unhooked to move the heating element and clean the roof of the appliance in one simple step. Side lights: Two opposing side lights increase visibility inside the oven.
Net volume of the cavity: 61 litres
Gross volume, 1st cavity: 70 l
Cavity material: Easy clean enamel
Shelf positions: 4
Type of shelves: Metal racks
No. of lights: 1
Light type: Halogen
Light power: 40 W
Fan number: 1
Cooking time setting: Start and Stop
Door opening: Side opening
Removable door: Yes
Full glass inner door: Yes
Total no. of door glasses: 3
No.of thermo-reflective door glasses: 1
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Tilting grill: Yes
Grill elememt: 1700 W
Large grill - Power: 2700 W
Lower heating element power: 1200 W
Upper heating element - Power: 1000 W
Circular heating element - Power: 2000 W
Temperature control: Electro-mechanical
Second Oven Technical Features
Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. The oven cavity has 9 different cooking levels. All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. Air cooling system: to ensure a safe surface temperatures. The capacity indicates the amount of usable space in the oven cavity in litres. Double glazed doors: Number of glazed doors. Side lights: Two opposing side lights increase visibility inside the oven. Electronic control: Allows you to maintain temperature inside the oven with the precision 2-3 ° C. This enables to cook meals that are very sensitive to temperature changes, such as cakes, souffles, puddings.
Net volume of the second cavity: 84 litres
Cavity material: Easy clean enamel
Shelf positions: 9
Type of shelves: Metal racks
No. of lights: 1
Light type: Halogen
Light power: 40 W
Door opening: Side opening
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
No. total door glasses: 2
No. thermo-reflective door glasses: 1
Safety Thermostat: Yes
Cooling system: Tangential
Temperature control: Electro-mechanical
Third Oven Technical Features
Enamel interior: The enamel interior of all Smeg ovens have a special antacid lining which helps keep the interior clean by reducing the amount of cooking grease adhering to it. The oven cavity has 2 different cooking levels. Side lights: Two opposing side lights increase visibility inside the oven. All glass inner door: All glass inner door, a single flat surface which is simple to keep clean. The capacity indicates the amount of usable space in the oven cavity in litres. Air cooling system: to ensure a safe surface temperatures. Triple glazed doors: Number of glazed doors. Tilting grill: the tilting grill can be easily unhooked to move the heating element and clean the roof of the appliance in one simple step.
Net volume, 3rd cavity: 36 l
Gross volume, 3rd cavity: 41 l
Cavity material: Easy clean enamel
Shelf positions: 2
Type of shelves: Metal racks
No. of lights: 1
Light type: Halogen
Light power: 40 W
Door opening: Flap down
Removable door: Yes
Full glass inner door: Yes
Removable inner door: Yes
No. total door glasses: 3
No. of thermo-reflective door glasses: 1
Safety Thermostat: Yes
Cooling system: Tangential
Grill type: Electric
Tilting grill: Yes
Large grill - Power: 2700 W
Temperature control: Electro-mechanical

Performance / Energy Label

Energy efficiency class: A
GAS - Energy consumption in fan-forced convection, first cavity: 2.77 MJ
Energy consumption forced air convection (kWh) first cavity: 0.77 KWh
GAS - Energy consumption conventional mode, first cavity: 3.42 MJ
Energy consumption conventional first cavity (kWh): 0.95 KWh

Performance /Energy Label - Second Cavity

B: Product energy rating, measured from A+++ to D / G depending on the product family.
Energy efficiency class, second cavity: B
GAS - Energy consumption in forced air convection, second cavity: 3.89 MJ
GAS - Energy consumption in forced air convection, second cavity: 1.08 KWh

Electrical Connection

Max Power Draw: 8900 W
Current: 39 A
Voltage: 220-240 V
Voltage 2 (V): 380-415 V
Frequency: 50/60 Hz
Additional connection modalities: Yes, Double and Three Phase
Type of electric cable: Yes, Single phase

Gas Connection

Gas connection rating (W): 12600 W
Gas Type: G20 Natural gas

Logistic Information

Dimensions of the product HxWxD (mm): 900x1000x600 mm
Width (mm): 1000 mm
Product Height (mm): 900 mm
Depth (mm): 600 mm
Dimensions of the packed product (mm): 1015X1060X670 mm
Gross weight (kg): 131.300 kg
Net weight (kg): 119.200 kg
Packed width: 1060 mm
Packaged depth: 670 mm
Height (mm) packed: 1015 mm
Maximum stackability: 4
Type of packaging: Cardboard
Packaging composition - paper & cardboard (kg): 7.016 kg
Packaging composition - polystyrene (kg): 1.052 kg
Packaging composition - wood (kg): 3.360 kg
Packaging composition - plastic (kg):

Guarantee Information
