FlameSelect® – Gain ultimate control of your flame.
Pan Supports - continuous cast-iron pan supports for maximum stability and cooking convenience.
Wok Burner - powerful cooking at up to 3.5 kW.
Sword Knobs - a better feel and easier to operate, the new knob in an attractive design
Stainless steel surface - elegant and sophisticated design.
Dimensions
Height: 45 mm
Width: 582 mm
Depth: 520 mm
Design
Stainless steel surface
black cast iron pan supports with protective rubber feet
Usage convenience
FlameSelect with 9 steps: precisely control and adjust the flame in nine defined levels.
Design co-ordinated control dials: easily access dials in front with strong grip for effortless turning.
Ignition via control dials: just push and turn the dials to ignite the flame.
Burners and power

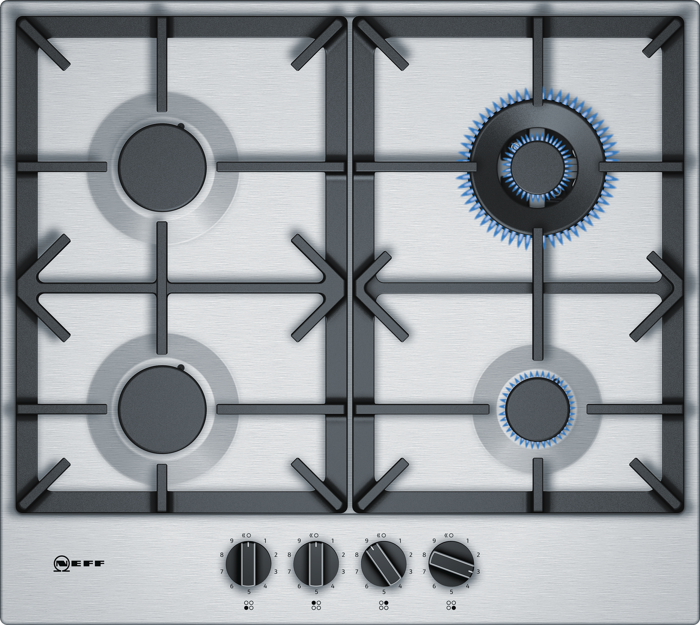

4 burner hob
Left front: Standard burner up to 1.75 KW (depending on gas type)
Left rear: Standard burner up to 1.75 KW (depending on gas type)
Right rear: WOK burner up to 3.5 KW (depending on gas type)
Right front: Economy burner up to 1 KW (depending on gas type)
Safety
Flame failure safety device: prevents unwanted gas flow when flame goes out.
Installation (gas types & measurements)
Usable for: Nat gas L/LL G25/20mbar(DE)
NG H/E 20mbar, E+ 20/25mbar
Natural gas H 25 mbar (HU)
Natural gas L 25 mbar (NL)
Liquid gas G30,31 28-30/37mbar
Liquid gas G30 37 mbar (PL)
Liquid gas 50 mbar
Factory set for connection to mains gas
Nozzle set for LPG jets (28-30/37mbar) included. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service.
Dimensions of the product (HxWxD mm): 53 x 582 x 520
Required niche size for installation (HxWxD mm) : 45 x 560 x (480 - 492)
Min. worktop thickness: 30 mm
Power cord: 1 m
Connected load: 8 KW
Guarantee Information
Guarantee / warranty maybe subject to registration with the manufacturer.
