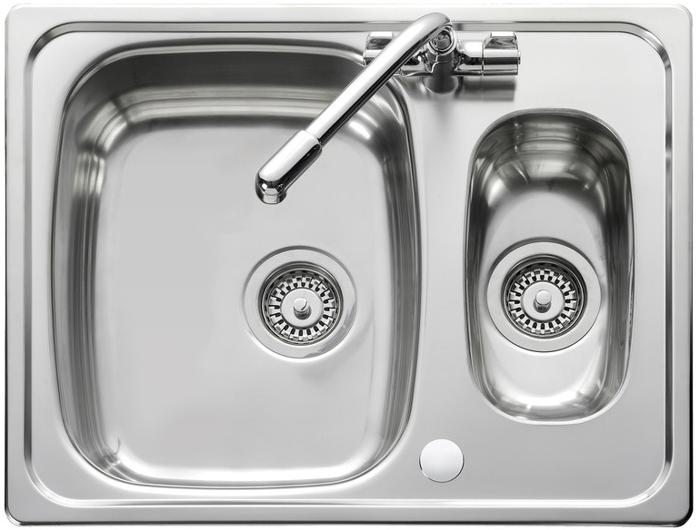

Leisure EL650 Euroline 1.5 Bowl Inset Sink + Rangemaster TMR1BF Dual Lever Tap ( Sink and Tap ) Stainless steel

• Main bowl dimensions: 340mm x 424mm x 155mm
• Half bowl dimensions: 156mm x 300mm x 125mm
• Minimum base unit: 600mm
• Waste kit included
• Polished finish
• Overall dimensions: 647mm x 508mm

Dimensions

Size: 647 mm x 508 mm

The Euroline collection features soft curved bowls with a recessed drainer design. Euroline is available in a multitude of different sizes, finishes and bowl configurations, offering a solution for every installation.

• Compact overall size, measuring 647 x 508mm
• Fits a 600mm cabinet
• Reversible installation
• Polished finish
• Manufactured from 18/10 stainless steel
• 10 year warranty

Technical

Material 18/10 Stainless Steel
Gauge (mm) 0.7
Finish Drainer Polished
Finish Bowl Polished
No. of bowls 1.5 bowls
Minimum Cabinet Size (mm) 600
Overall Length (mm) 647
Overall Width (mm) 508
Cutout Length (mm) 627
Cutout Width (mm) 488
Main Bowl Length (mm) 340
Main Bowl Width (mm) 424
Main Bowl Depth (mm) 155
Second Bowl Length (mm) 156
Second Bowl Width (mm) 300
Second Bowl Depth (mm) 125
Tap Hole Size (mm) 1 x 35
Waste Size (mm) 2 x 92

• Suitable for medium pressure water systems emitting a minimum pressure of 0.5 bar or above
• Featuring an anti-splash spout with honeycomb aerator design which mixes air with water to emit a water flow with no splash
• Minimum Pressure (Bar) 0.5
• Overall Height (mm) 363
• Quarter Turn

Dimensions

The Monorise kitchen tap stands proud, featuring dual lever handles with a modern pin style design, the Monorise tap incorporates good looks with practical design. Available in two finishes, chrome and brushed.

• Suitable for medium pressure water systems emitting a minimum pressure of 0.5 bar or above
• Featuring an anti-splash spout with honeycomb aerator design which mixes air with water to emit a water flow with no splash

Ceramic Disc Cartridge Yes
Quarter Turn Handles Yes
Flexible Inlet Pipes Yes
Honeycomb Aerator Yes
Material Type Brass
Minimum Pressure (Bar) 0.5
Maximum Pressure (Bar) 5.5
Recommended Water Temperature 46°C
Maximum Water Temperature 70°C
Mixed Flow Rate, 3 Bar Pressure (litres/min) 13.60
Flow Type Single_Flow
Overall Height (mm) 363
Spout Exit Height (mm) 233
Spout Exit Length (mm) 194
Spout Diameter (mm) 22
Spout Rotation Range 360°
Base Diameter (mm) 45
Centre Distance (mm) -
Recommended Fixing Hole Diameter 35
Handle Control Quarter Turn
Cartridge Type Ceramic Disc Cartridge
Aerator Type Honeycomb Aerator
Inlet Pipes Included 1/2" Stainless Flexible Hoses
