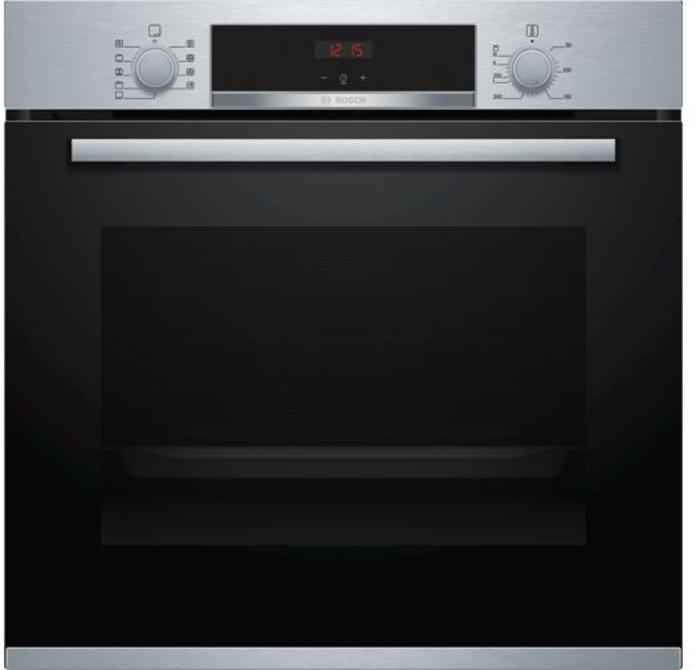

Bosch HBS534BS0B Single Electric Oven + PGP6B5B90 4 Burner Gas Hob ( Oven and Hob Pack ) Stainless steel

• 3D Hotair: perfect results thanks to optimal distribution of heat on up to 3 levels simultaneously.
• Red LED display control: easy-to-use thanks to clear time display.
• Pop-out controls: for an easy to clean front.
• EcoClean Direct: almost no cleaning is necessary thanks to a special coating of the rear wall that cleans itself
• Slim Universal Pans: 2 universal pans, slim size; optimised for smaller dishes

Dimensions

The built-in oven with 3D hot air: achieve perfect baking and roasting results on up to three levels simultaneously.

• 3D Hotair: perfect results thanks to optimal distribution of heat on up to 3 levels simultaneously.
• Red LED display control: easy-to-use thanks to clear time display.
• Pop-out controls: for an easy to clean front.
• EcoClean Direct: almost no cleaning is necessary thanks to a special coating of the rear wall that cleans itself
• Slim Universal Pans: 2 universal pans, slim size; optimised for smaller dishes

Slim sized universal pan

The slim sized universal pans are perfect when cooking two variants of the same dish or smaller quanitites of food. Thanks to their compact size, the pans can easily be cleaned in the dishwasher and also fit nicely in Bosch fridges for cooling pre and post cooking.

Evenly baked results - on up to three levels.

This function distributes heat quickly and evenly throughout the oven, making it possible to cook on up to three levels simultaneously. Sweet and savoury dishes can be cooked at the same time without mixing flavours.

Turn your oven into a cleaning aid.

EcoClean Direct, the energy-saving cleaning aid, makes oven cleaning easy. A special coating of microfine ceramic spheres on the back wall breaks down grease spatters while you bake or roast – for the entire service life of the appliance. Saving you time and energy.

Performance

• Energy efficiency rating (acc. EU Nr. 65/2014): A Energy consumption per cycle in conventional mode: 0.97 kWh Energy consumption per cycle in fan-forced convection mode: 0.81 kWh Number of cavities: Main cavity Heat source: electrical Cavity volume: 71 litre capacity
• Temperature range 50 °C - 275 °C
• Total connected load electric: 2.99 KW
• Nominal voltage: 220 - 240 V
• 120 cm Cable length
• Appliance dimension (hxwxd): 595 mm x 594 mm x 548 mm
• Niche dimension (hxwxd): 585 mm - 595 mm x 560 mm - 568 mm x 550 mm
• Please refer to the dimensions provided in the installation manual

Programmes

• Oven with 7 PC heating methods: 3D Hotair, conventional top and bottom heat, Hotair grilling, full width variable grill, pizza function, bottom heat, Hotair gentle
• Fast pre-heating function

Features

• Control panel lock
• Electronic clock timer
• Interior halogen light
• Integral cooling fan
• 5 shelf positions
• Automatic start

• Continuous cast-iron pan supports: for maximum stability.
• Biomethane-ready: your gas hob can also be powered with renewable biomethane gas.
• Ergonomic control knobs with raised center for precise adjustments.
• Surface colour: elegant stainless-steel design.
• The seamless, one-piece stainless steel design makes cleaning simple

Dimensions

Design

• Stainless steel surface
• Cast iron pan supports

Usage convenience

• Design co-ordinated control dials: easily access dials in front with strong grip for effortless turning.
• Ignition via control dials: just push and turn the dials to ignite the flame.

Burners and power

• 4 gas burners:
• Left front: standard burner up to 1.75 KW (depending on gas type)
• Left rear: Standard burner up to 1.75 KW (depending on gas type)
• Right rear: high-speed burner up to 3 KW (depending on gas type)
• Right front: economy burner up to 1 KW (depending on gas type)

Safety

• Flame failure safety device: prevents unwanted gas flow when flame goes out.

Installation (gas types & measurements)

• Pre-set for natural gas
• Nozzle set for LPG jets included. Connection to 28-30/37 mbar bottled gas. Nozzles for all other gas types can be ordered via the customer service. For nozzle change, please contact the customer service.
• Dimensions of the product (HxWxD mm): 53 x 582 x 520
• Required niche size for installation (HxWxD mm) : 45 x 560 x (480 - 492)
• Min. worktop thickness: 30 mm
• Power cord: 1 m
• Connected load: 7.5 KW
